EIGRP – summarization – part 2

This is the 2nd part of the EIGRP summarization series. Please read previous post if you didn't to understand the topic better. The network diagram from previous post:






 Below you can see routing tables from R4, R5 and R6 before summarization:


R4#sh ip route
 Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
  D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
  N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
  E1 - OSPF external type 1, E2 - OSPF external type 2
  i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
  ia - IS-IS inter area, * - candidate default, U - per-user static route
  o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
  + - replicated route, % - next hop override

 Gateway of last resort is not set

 10.0.0.0/8 is variably subnetted, 25 subnets, 2 masks
 D 10.0.0.0/24 [90/153600] via 10.2.0.2, 01:30:40, FastEthernet0/0
 D 10.1.0.0/24 [90/204800] via 10.2.0.2, 00:54:52, FastEthernet0/0
 D 10.1.1.0/24 [90/205440] via 10.2.0.2, 00:54:51, FastEthernet0/0
 D 10.1.2.0/24 [90/205440] via 10.2.0.2, 00:54:51, FastEthernet0/0
 D 10.1.3.0/24 [90/205440] via 10.2.0.2, 00:54:51, FastEthernet0/0
 D 10.1.4.0/24 [90/205440] via 10.2.0.2, 00:54:51, FastEthernet0/0
 D 10.1.5.0/24 [90/205440] via 10.2.0.2, 00:54:51, FastEthernet0/0
 C 10.2.0.0/24 is directly connected, FastEthernet0/0
 L 10.2.0.4/32 is directly connected, FastEthernet0/0
 C 10.2.1.0/24 is directly connected, Loopback1
 L 10.2.1.4/32 is directly connected, Loopback1
 C 10.2.2.0/24 is directly connected, Loopback2
 L 10.2.2.4/32 is directly connected, Loopback2
 C 10.2.3.0/24 is directly connected, Loopback3
 L 10.2.3.4/32 is directly connected, Loopback3
 C 10.2.4.0/24 is directly connected, Loopback4
 L 10.2.4.4/32 is directly connected, Loopback4
 C 10.2.5.0/24 is directly connected, Loopback5
 L 10.2.5.4/32 is directly connected, Loopback5
 D 10.3.0.0/24 [90/204800] via 10.2.0.2, 01:24:33, FastEthernet0/0
 D 10.3.1.0/24 [90/205440] via 10.2.0.2, 00:00:09, FastEthernet0/0
 D 10.3.2.0/24 [90/205440] via 10.2.0.2, 00:00:09, FastEthernet0/0
 D 10.3.3.0/24 [90/205440] via 10.2.0.2, 00:00:09, FastEthernet0/0
 D 10.3.4.0/24 [90/205440] via 10.2.0.2, 00:00:09, FastEthernet0/0
 D 10.3.5.0/24 [90/205440] via 10.2.0.2, 00:00:09, FastEthernet0/0
 R4#



R5#sh ip route
 Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
  D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
  N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
  E1 - OSPF external type 1, E2 - OSPF external type 2
  i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
  ia - IS-IS inter area, * - candidate default, U - per-user static route
  o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
  + - replicated route, % - next hop override

 Gateway of last resort is not set

 10.0.0.0/8 is variably subnetted, 25 subnets, 2 masks
 D 10.0.0.0/24 [90/153600] via 10.3.0.3, 01:27:47, FastEthernet0/0
 D 10.1.0.0/24 [90/204800] via 10.3.0.3, 00:58:04, FastEthernet0/0
 D 10.1.1.0/24 [90/205440] via 10.3.0.3, 00:58:04, FastEthernet0/0
 D 10.1.2.0/24 [90/205440] via 10.3.0.3, 00:58:04, FastEthernet0/0
 D 10.1.3.0/24 [90/205440] via 10.3.0.3, 00:58:03, FastEthernet0/0
 D 10.1.4.0/24 [90/205440] via 10.3.0.3, 00:58:03, FastEthernet0/0
 D 10.1.5.0/24 [90/205440] via 10.3.0.3, 00:58:03, FastEthernet0/0
 D 10.2.0.0/24 [90/204800] via 10.3.0.3, 00:59:06, FastEthernet0/0
 D 10.2.1.0/24 [90/205440] via 10.3.0.3, 00:58:32, FastEthernet0/0
 D 10.2.2.0/24 [90/205440] via 10.3.0.3, 00:58:32, FastEthernet0/0
 D 10.2.3.0/24 [90/205440] via 10.3.0.3, 00:58:32, FastEthernet0/0
 D 10.2.4.0/24 [90/205440] via 10.3.0.3, 00:58:32, FastEthernet0/0
 D 10.2.5.0/24 [90/205440] via 10.3.0.3, 00:58:32, FastEthernet0/0
 C 10.3.0.0/24 is directly connected, FastEthernet0/0
 L 10.3.0.5/32 is directly connected, FastEthernet0/0
 C 10.3.1.0/24 is directly connected, Loopback1
 L 10.3.1.5/32 is directly connected, Loopback1
 C 10.3.2.0/24 is directly connected, Loopback2
 L 10.3.2.5/32 is directly connected, Loopback2
 C 10.3.3.0/24 is directly connected, Loopback3
 L 10.3.3.5/32 is directly connected, Loopback3
 C 10.3.4.0/24 is directly connected, Loopback4
 L 10.3.4.5/32 is directly connected, Loopback4
 C 10.3.5.0/24 is directly connected, Loopback5
 L 10.3.5.5/32 is directly connected, Loopback5
 R5#


R6#sh ip route
 Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
  D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
  N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
  E1 - OSPF external type 1, E2 - OSPF external type 2
  i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
  ia - IS-IS inter area, * - candidate default, U - per-user static route
  o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
  + - replicated route, % - next hop override

 Gateway of last resort is not set

 10.0.0.0/8 is variably subnetted, 25 subnets, 2 masks
 D 10.0.0.0/24 [90/153600] via 10.1.0.1, 00:58:52, FastEthernet0/0
 C 10.1.0.0/24 is directly connected, FastEthernet0/0
 L 10.1.0.6/32 is directly connected, FastEthernet0/0
 C 10.1.1.0/24 is directly connected, Loopback1
 L 10.1.1.6/32 is directly connected, Loopback1
 C 10.1.2.0/24 is directly connected, Loopback2
 L 10.1.2.6/32 is directly connected, Loopback2
 C 10.1.3.0/24 is directly connected, Loopback3
 L 10.1.3.6/32 is directly connected, Loopback3
 C 10.1.4.0/24 is directly connected, Loopback4
 L 10.1.4.6/32 is directly connected, Loopback4
 C 10.1.5.0/24 is directly connected, Loopback5
 L 10.1.5.6/32 is directly connected, Loopback5
 D 10.2.0.0/24 [90/204800] via 10.1.0.1, 00:58:52, FastEthernet0/0
 D 10.2.1.0/24 [90/205440] via 10.1.0.1, 00:58:52, FastEthernet0/0
 D 10.2.2.0/24 [90/205440] via 10.1.0.1, 00:58:52, FastEthernet0/0
 D 10.2.3.0/24 [90/205440] via 10.1.0.1, 00:58:52, FastEthernet0/0
 D 10.2.4.0/24 [90/205440] via 10.1.0.1, 00:58:52, FastEthernet0/0
 D 10.2.5.0/24 [90/205440] via 10.1.0.1, 00:58:52, FastEthernet0/0
 D 10.3.0.0/24 [90/204800] via 10.1.0.1, 00:58:52, FastEthernet0/0
 D 10.3.1.0/24 [90/205440] via 10.1.0.1, 00:04:10, FastEthernet0/0
 D 10.3.2.0/24 [90/205440] via 10.1.0.1, 00:04:10, FastEthernet0/0
 D 10.3.3.0/24 [90/205440] via 10.1.0.1, 00:04:10, FastEthernet0/0
 D 10.3.4.0/24 [90/205440] via 10.1.0.1, 00:04:10, FastEthernet0/0
 D 10.3.5.0/24 [90/205440] via 10.1.0.1, 00:04:10, FastEthernet0/0
 R6#

Now I enable summarization on all routers according to the diagram below:






And now we check routing tables on all devices:


R2#sh ip route
 Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
  D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
  N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
  E1 - OSPF external type 1, E2 - OSPF external type 2
  i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
  ia - IS-IS inter area, * - candidate default, U - per-user static route
  o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
  + - replicated route, % - next hop override

 Gateway of last resort is not set

 10.0.0.0/8 is variably subnetted, 8 subnets, 4 masks
 C 10.0.0.0/24 is directly connected, FastEthernet0/0
 L 10.0.0.2/32 is directly connected, FastEthernet0/0
 D 10.1.0.0/16 [90/153600] via 10.0.0.1, 00:00:49, FastEthernet0/0
 D 10.2.0.0/16 is a summary, 00:02:46, Null0
 D 10.2.0.0/21 [90/103040] via 10.2.0.4, 00:03:25, FastEthernet1/0
 C 10.2.0.0/24 is directly connected, FastEthernet1/0
 L 10.2.0.2/32 is directly connected, FastEthernet1/0
 D 10.3.0.0/16 [90/153600] via 10.0.0.3, 00:04:14, FastEthernet0/0
 R2#


R4#sh ip route
 Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
  D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
  N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
  E1 - OSPF external type 1, E2 - OSPF external type 2
  i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
  ia - IS-IS inter area, * - candidate default, U - per-user static route
  o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
  + - replicated route, % - next hop override

 Gateway of last resort is not set

 10.0.0.0/8 is variably subnetted, 16 subnets, 4 masks
 D 10.0.0.0/24 [90/153600] via 10.2.0.2, 01:43:57, FastEthernet0/0
 D 10.1.0.0/16 [90/204800] via 10.2.0.2, 00:03:03, FastEthernet0/0
 D 10.2.0.0/21 is a summary, 00:05:39, Null0
 C 10.2.0.0/24 is directly connected, FastEthernet0/0
 L 10.2.0.4/32 is directly connected, FastEthernet0/0
 C 10.2.1.0/24 is directly connected, Loopback1
 L 10.2.1.4/32 is directly connected, Loopback1
 C 10.2.2.0/24 is directly connected, Loopback2
 L 10.2.2.4/32 is directly connected, Loopback2
 C 10.2.3.0/24 is directly connected, Loopback3
 L 10.2.3.4/32 is directly connected, Loopback3
 C 10.2.4.0/24 is directly connected, Loopback4
 L 10.2.4.4/32 is directly connected, Loopback4
 C 10.2.5.0/24 is directly connected, Loopback5
 L 10.2.5.4/32 is directly connected, Loopback5
 D 10.3.0.0/16 [90/204800] via 10.2.0.2, 00:06:28, FastEthernet0/0
 R4#


R1#sh ip route
 Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
  D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
  N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
  E1 - OSPF external type 1, E2 - OSPF external type 2
  i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
  ia - IS-IS inter area, * - candidate default, U - per-user static route
  o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
  + - replicated route, % - next hop override

 Gateway of last resort is not set

 10.0.0.0/8 is variably subnetted, 8 subnets, 4 masks
 C 10.0.0.0/24 is directly connected, FastEthernet0/0
 L 10.0.0.1/32 is directly connected, FastEthernet0/0
 D 10.1.0.0/16 is a summary, 00:05:04, Null0
 D 10.1.0.0/21 [90/103040] via 10.1.0.6, 00:06:06, FastEthernet1/0
 C 10.1.0.0/24 is directly connected, FastEthernet1/0
 L 10.1.0.1/32 is directly connected, FastEthernet1/0
 D 10.2.0.0/16 [90/153600] via 10.0.0.2, 00:07:01, FastEthernet0/0
 D 10.3.0.0/16 [90/153600] via 10.0.0.3, 00:08:28, FastEthernet0/0
 R1#


R6#sh ip route
 Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
  D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
  N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
  E1 - OSPF external type 1, E2 - OSPF external type 2
  i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
  ia - IS-IS inter area, * - candidate default, U - per-user static route
  o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
  + - replicated route, % - next hop override

 Gateway of last resort is not set

 10.0.0.0/8 is variably subnetted, 16 subnets, 4 masks
 D 10.0.0.0/24 [90/153600] via 10.1.0.1, 01:10:56, FastEthernet0/0
 D 10.1.0.0/21 is a summary, 00:06:54, Null0
 C 10.1.0.0/24 is directly connected, FastEthernet0/0
 L 10.1.0.6/32 is directly connected, FastEthernet0/0
 C 10.1.1.0/24 is directly connected, Loopback1
 L 10.1.1.6/32 is directly connected, Loopback1
 C 10.1.2.0/24 is directly connected, Loopback2
 L 10.1.2.6/32 is directly connected, Loopback2
 C 10.1.3.0/24 is directly connected, Loopback3
 L 10.1.3.6/32 is directly connected, Loopback3
 C 10.1.4.0/24 is directly connected, Loopback4
 L 10.1.4.6/32 is directly connected, Loopback4
 C 10.1.5.0/24 is directly connected, Loopback5
 L 10.1.5.6/32 is directly connected, Loopback5
 D 10.2.0.0/16 [90/204800] via 10.1.0.1, 00:07:48, FastEthernet0/0
 D 10.3.0.0/16 [90/204800] via 10.1.0.1, 00:09:16, FastEthernet0/0
 R6#


R3#sh ip route
 Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
  D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
  N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
  E1 - OSPF external type 1, E2 - OSPF external type 2
  i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
  ia - IS-IS inter area, * - candidate default, U - per-user static route
  o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
  + - replicated route, % - next hop override

 Gateway of last resort is not set

 10.0.0.0/8 is variably subnetted, 8 subnets, 4 masks
 C 10.0.0.0/24 is directly connected, FastEthernet0/0
 L 10.0.0.3/32 is directly connected, FastEthernet0/0
 D 10.1.0.0/16 [90/153600] via 10.0.0.1, 00:07:32, FastEthernet0/0
 D 10.2.0.0/16 [90/153600] via 10.0.0.2, 00:09:29, FastEthernet0/0
 D 10.3.0.0/16 is a summary, 00:10:57, Null0
 D 10.3.0.0/21 [90/103040] via 10.3.0.5, 00:11:44, FastEthernet1/0
 C 10.3.0.0/24 is directly connected, FastEthernet1/0
 L 10.3.0.3/32 is directly connected, FastEthernet1/0
 R3#


R5#sh ip route
 Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
  D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
  N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
  E1 - OSPF external type 1, E2 - OSPF external type 2
  i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
  ia - IS-IS inter area, * - candidate default, U - per-user static route
  o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
  + - replicated route, % - next hop override

 Gateway of last resort is not set

 10.0.0.0/8 is variably subnetted, 16 subnets, 4 masks
 D 10.0.0.0/24 [90/153600] via 10.3.0.3, 01:43:02, FastEthernet0/0
 D 10.1.0.0/16 [90/204800] via 10.3.0.3, 00:08:13, FastEthernet0/0
 D 10.2.0.0/16 [90/204800] via 10.3.0.3, 00:10:10, FastEthernet0/0
 D 10.3.0.0/21 is a summary, 00:12:26, Null0
 C 10.3.0.0/24 is directly connected, FastEthernet0/0
 L 10.3.0.5/32 is directly connected, FastEthernet0/0
 C 10.3.1.0/24 is directly connected, Loopback1
 L 10.3.1.5/32 is directly connected, Loopback1
 C 10.3.2.0/24 is directly connected, Loopback2
 L 10.3.2.5/32 is directly connected, Loopback2
 C 10.3.3.0/24 is directly connected, Loopback3
 L 10.3.3.5/32 is directly connected, Loopback3
 C 10.3.4.0/24 is directly connected, Loopback4
 L 10.3.4.5/32 is directly connected, Loopback4
 C 10.3.5.0/24 is directly connected, Loopback5
 L 10.3.5.5/32 is directly connected, Loopback5
 R5#


Now all groups of networks are presented under one prefix. What are the consequences of such summarization? Let's simulate outage on one of the networks.

I shutdown subnet 10.3.5.0/24 which is on R5 and I will check what kind of EIGRP messages I can see on R4.

Connection test before I shutdown the network:


R4#ping 10.3.5.5 source 10.2.5.4
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.3.5.5, timeout is 2 seconds:
Packet sent with a source address of 10.2.5.4
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 28/36/44 ms
R4#
R4#traceroute 10.3.5.5 source 10.2.5.4
Type escape sequence to abort.
Tracing the route to 10.3.5.5
VRF info: (vrf in name/id, vrf out name/id)
 1 10.2.0.2 28 msec 16 msec 20 msec
 2 10.0.0.3 28 msec 24 msec 20 msec
 3 10.3.0.5 28 msec 32 msec 28 msec
R4#


Now I shutdown the interface Loopback5 on R5 (10.3.5.0/24) and this is what I see on R4:

R5#conf t
Enter configuration commands, one per line. End with CNTL/Z.
R5(config)#int loo5
R5(config-if)#sh
R5(config-if)#
*Jul 21 15:43:02.195: %LINEPROTO-5-UPDOWN: Line protocol on Interface Loopback5, changed state to down
*Jul 21 15:43:02.199: %LINK-5-CHANGED: Interface Loopback5, changed state to administratively down
R5(config-if)#

on R4 I can't see any notification about 10.3.5.0/24 failure:

R4#
*Jul 21 15:43:01.635: EIGRP: Received HELLO on Fa0/0 - paklen 20 nbr 10.2.0.2
*Jul 21 15:43:01.635: AS 100, Flags 0x0:(NULL), Seq 0/0 interfaceQ 0/0 iidbQ un/rely 0/0 peerQ un/rely 0/0
*Jul 21 15:43:01.639: {type = 1, length = 12}
*Jul 21 15:43:01.639: {vector = {
*Jul 21 15:43:01.643: {01000100 0000000F}
*Jul 21 15:43:01.651: }
*Jul 21 15:43:01.651: {type = 4, length = 8}
*Jul 21 15:43:01.655: {vector = {
*Jul 21 15:43:01.655: {0B000200}
*Jul 21 15:43:01.655: }
R4#
*Jul 21 15:43:04.543: EIGRP: Sending HELLO on Fa0/0 - paklen 26
*Jul 21 15:43:04.543: AS 100, Flags 0x0:(NULL), Seq 0/0 interfaceQ 0/0 iidbQ un/rely 0/0
*Jul 21 15:43:04.547: {type = 1, length = 12}
*Jul 21 15:43:04.547: {vector = {
*Jul 21 15:43:04.547: {01000100 0000000F}
*Jul 21 15:43:04.551: }
*Jul 21 15:43:04.551: {type = 4, length = 8}
*Jul 21 15:43:04.551: {vector = {
*Jul 21 15:43:04.551: {0B000200}
*Jul 21 15:43:04.551: }
*Jul 21 15:43:04.551: {type = 6, length = 6}
*Jul 21 15:43:04.551: {vector = {
*Jul 21 15:43:04.551: {000D}
*Jul 21 15:43:04.555: }
R4#
*Jul 21 15:43:06.095: EIGRP: Received HELLO on Fa0/0 - paklen 20 nbr 10.2.0.2
*Jul 21 15:43:06.095: AS 100, Flags 0x0:(NULL), Seq 0/0 interfaceQ 0/0 iidbQ un/rely 0/0 peerQ un/rely 0/0
*Jul 21 15:43:06.095: {type = 1, length = 12}
*Jul 21 15:43:06.095: {vector = {
*Jul 21 15:43:06.095: {01000100 0000000F}
*Jul 21 15:43:06.095: }
*Jul 21 15:43:06.095: {type = 4, length = 8}
*Jul 21 15:43:06.095: {vector = {
*Jul 21 15:43:06.095: {0B000200}
*Jul 21 15:43:06.095: }
R4#
*Jul 21 15:43:08.939: EIGRP: Sending HELLO on Fa0/0 - paklen 26
*Jul 21 15:43:08.939: AS 100, Flags 0x0:(NULL), Seq 0/0 interfaceQ 0/0 iidbQ un/rely 0/0
*Jul 21 15:43:08.943: {type = 1, length = 12}
*Jul 21 15:43:08.943: {vector = {
*Jul 21 15:43:08.943: {01000100 0000000F}
*Jul 21 15:43:08.943: }
*Jul 21 15:43:08.943: {type = 4, length = 8}
*Jul 21 15:43:08.943: {vector = {
*Jul 21 15:43:08.943: {0B000200}
*Jul 21 15:43:08.943: }
*Jul 21 15:43:08.943: {type = 6, length = 6}
*Jul 21 15:43:08.943: {vector = {
*Jul 21 15:43:08.943: {000D}
*Jul 21 15:43:08.943: }
R4#
Let's test the connectivity now:

R4#ping 10.3.5.5 source 10.2.5.4
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.3.5.5, timeout is 2 seconds:
Packet sent with a source address of 10.2.5.4
UUUUU
Success rate is 0 percent (0/5)
R4#
As you can see I can't reach the network:


R5 sent ICMP packet - Destination unreachable (Host unreachable) - type 3, code 1:

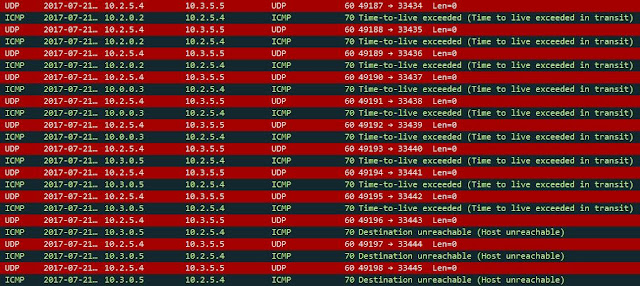

From traceroute output you can see no response from the destination (4th hop):

R4#traceroute 10.3.5.5 source 10.2.5.4
Type escape sequence to abort.
Tracing the route to 10.3.5.5
VRF info: (vrf in name/id, vrf out name/id)
 1 10.2.0.2 16 msec 12 msec 8 msec
 2 10.0.0.3 20 msec 20 msec 20 msec
 3 10.3.0.5 40 msec 32 msec 28 msec
 4 10.3.0.5 !H !H !H
R4#




 As you remember traceroute increases TTL by one hitting every hop in transit:















but the response starts from TTL=255 and goes down:















This is next hop with TTL=2

















and its response with TTL=254













and finally last one with TTL=4













and its response with TTL=253

















I think I went to deep with the traceroute. If you are interested to read more there is a dedicated post only for traceroute and its different variations (http://myitmicroblog.blogspot.com/2015/01/traceroute-cisco-linux-and-windows.html)

Going back to our main topic: one subnet is unreachable but due to summarization no one is aware of it (except R5 of course) - this is black holing. This is one of the cons of summarization but in a huge production networks it is impossible to keep all prefixes in the routing tables. As you probably notice we also limit query range. R4 didn't receive any query as it happened in the scenario in the previous post. This is a huge pros. The number of EIGRP messages dropped significantly.

Once the failure is detected R5 sends query looking for alternate path to it but the query is not sent further behind R3 as it was in last scenario without summarization:

















Capture from R3 (failure detected at 00:20:47):













and this is what I see on R2:











and R4:











What we have just proved that summarization is one of the method to limit the scope of queries, lower the number of prefixes on the routing table. In next post I will test another feature 'EIGRP stub' to achieve pretty much the same result.












Labels:






























Comments











Post a Comment



















Popular posts from this blog





















What should you know about HA 'override enabled' setting on Fortigate?




























High availability  is mandatory in most of today's network designs. Only very small companies or branches can run their business without redundancy. When you have Fortigate firewall in your network you have many options to increase network availability. You can use Fortigate Clustering Protocol ( FGCP ) or Virtual Router Redundancy Protocol ( VRRP ). FGCP has two modes: 'override' disabled  (default) and 'override' enabled . I'm not going to explain how to set up HA as you can find many resources on Fortinet websites:   https://cookbook.fortinet.com/high-availability-two-fortigates-56/   https://cookbook.fortinet.com/high-availability-with-fgcp-56/             Let's recap what is the main difference between them. The default HA setting is 'override' disabled  and this is an order of selection an active unit:   1) number of monitored interfaces  - when both units have the same number of working (up) interfaces check next parameter  2) HA uptime  - an ...




















8 comments









Read more






























FortiGate and GRE tunnel




























Recently I worked on one project where a client requested to re-route web traffic to the GRE tunnel to perform traffic inspection. I would like to share with you what is required if you configure it on FortiGate.       We need  a new GRE interface and policy base routing (PBR) to change the route for specific source IPs. Of course you need firewall policies to permit the traffic.   Let's start with GRE interface. Unfortunately you can't configure it using the GUI, only CLI is the option:    config system gre-tunnel  edit "gre1"  set interface "port1"  set local-gw 55.55.55.55  set remote-gw 44.44.44.44  next  end   When the end peer is Cisco router, you need to set the IP for the GRE interface:   config system interface  edit gre1  set ip 192.168.10.10 255.255.255.255  set remote-ip192.168.10.20  end   In next step we need to fix routing. We need the alternate path via GRE but to keep the route in the active routing table you need to set the same AD (adminis...




















Post a Comment









Read more






























Inpection of asymmetric sessions on FortiGate




























There is one feature available on FortiGate, and I think you should know it, as it modifies a bit what we know about stateful firewalls. In past every packet was treated individually and you had to create policies in both directions. With stateful firewalls we can track connections, and by checking couple of attributes, we can treat them as part of the same session. For example when you initiate connection from a host1 to host2, the returning connection from host2 to host1 will be treated as part of the same connection (session). They have to have the same source/destination and destination/source IPs, port numbers and interfaces.There is an exception from this rule and FortiGate in some specific cases can accept connections on port which was not used in the initial connection. Let me explain how it works on the below example:              The host1 has a default gateway on R1 (10.0.1.2), but you may notice that it is not the optimal path to host2 subnet. When we analyze ...




















1 comment









Read more
